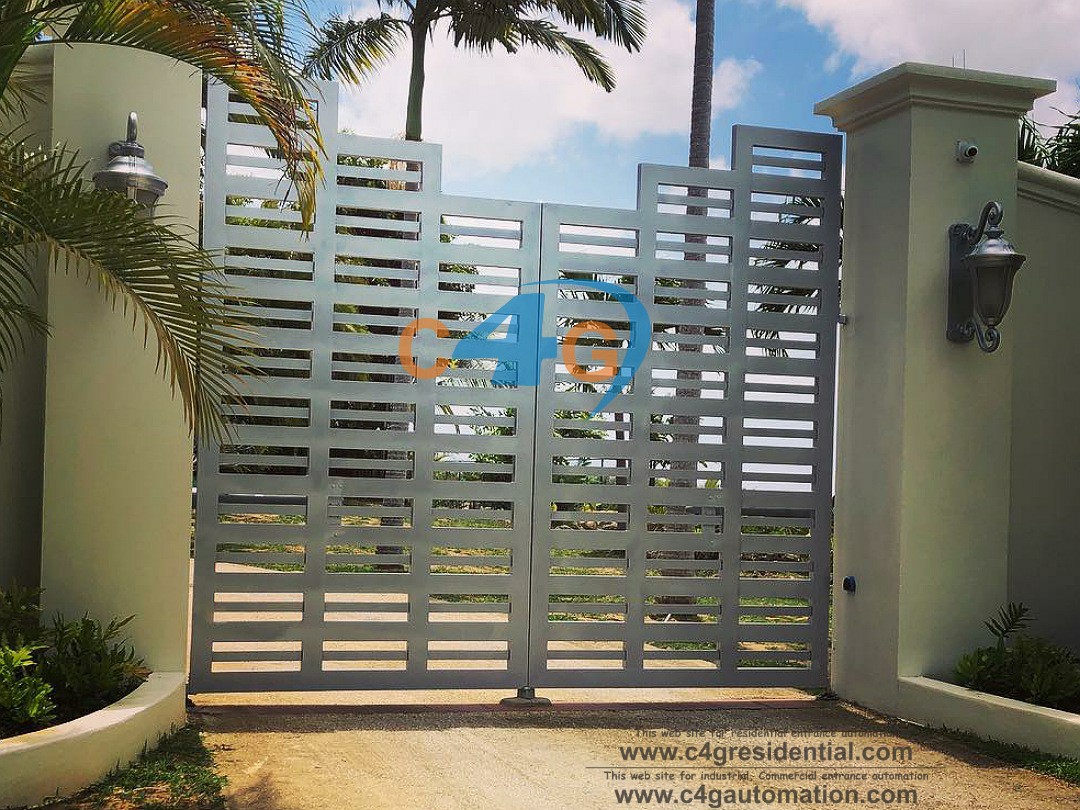

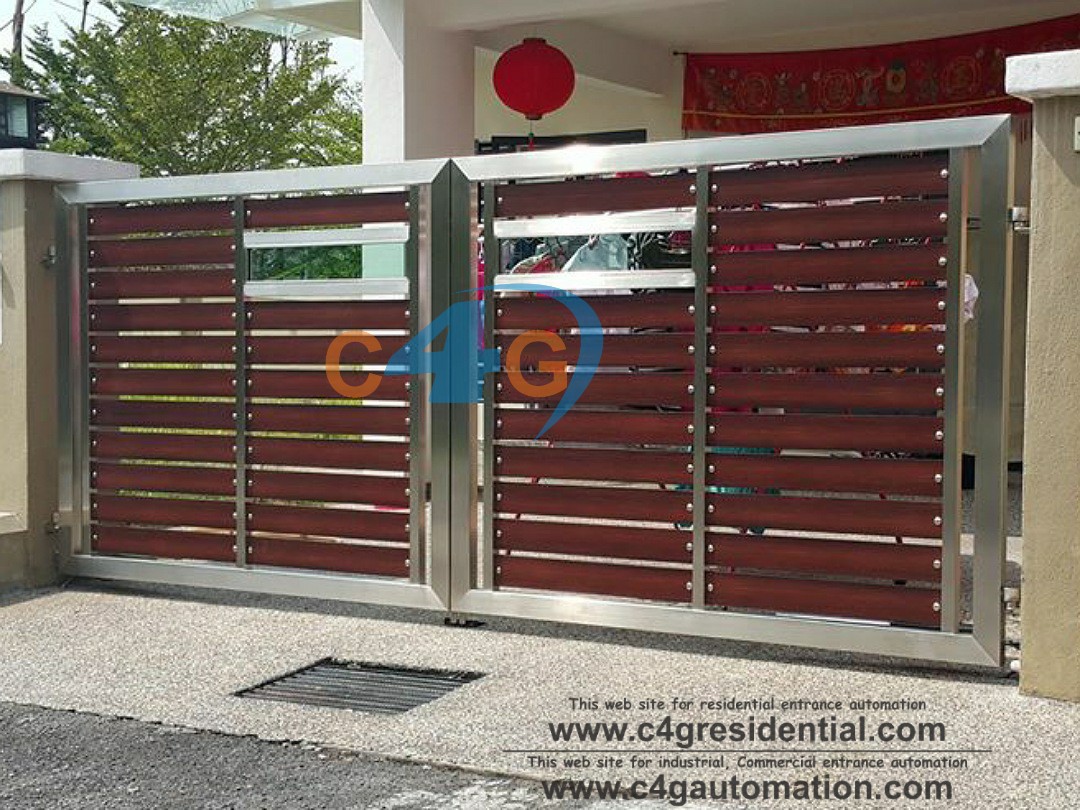

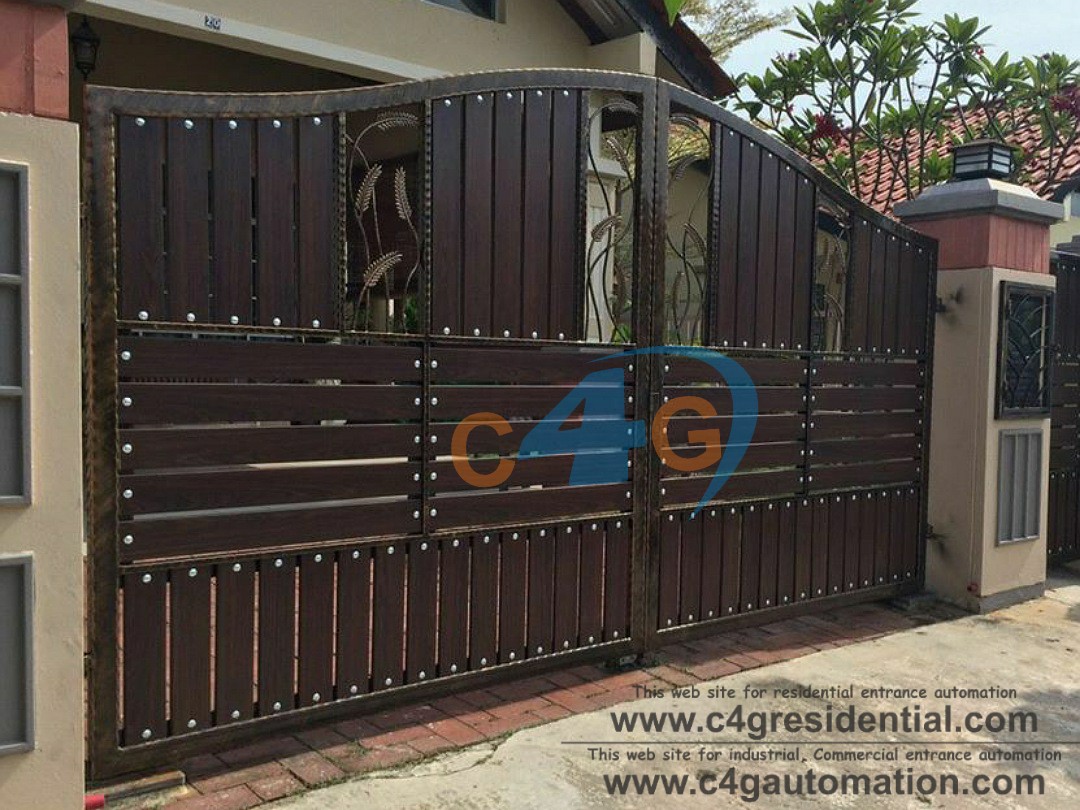

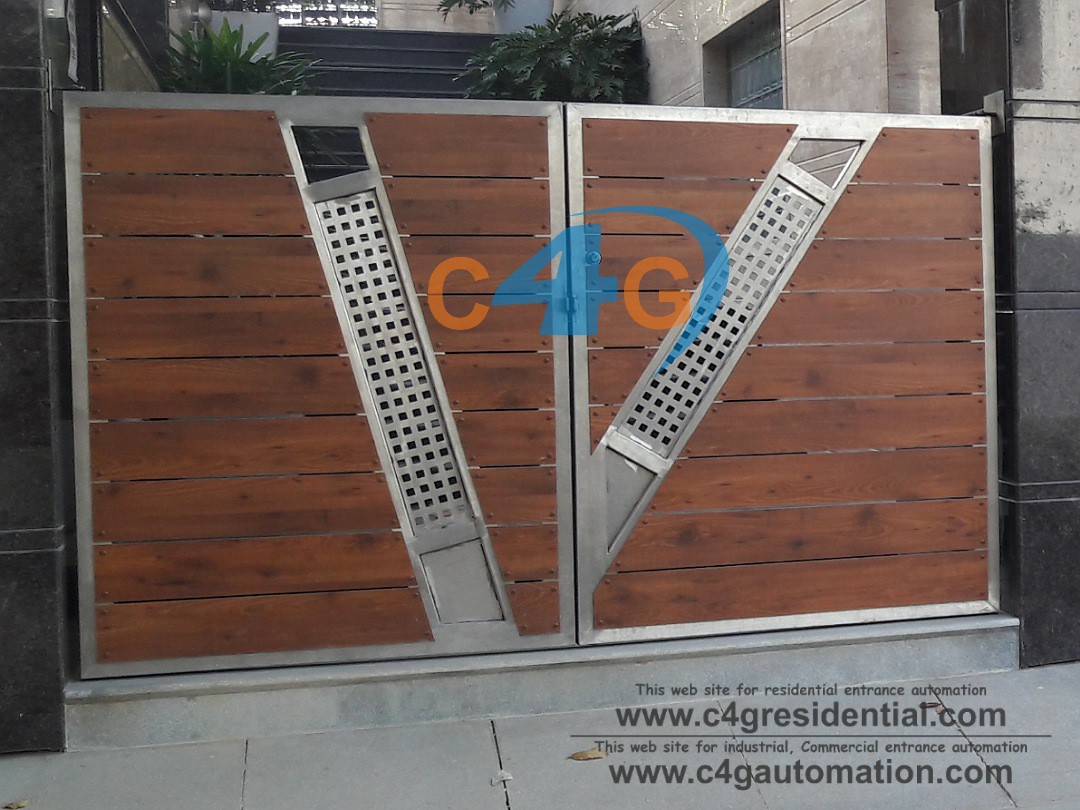

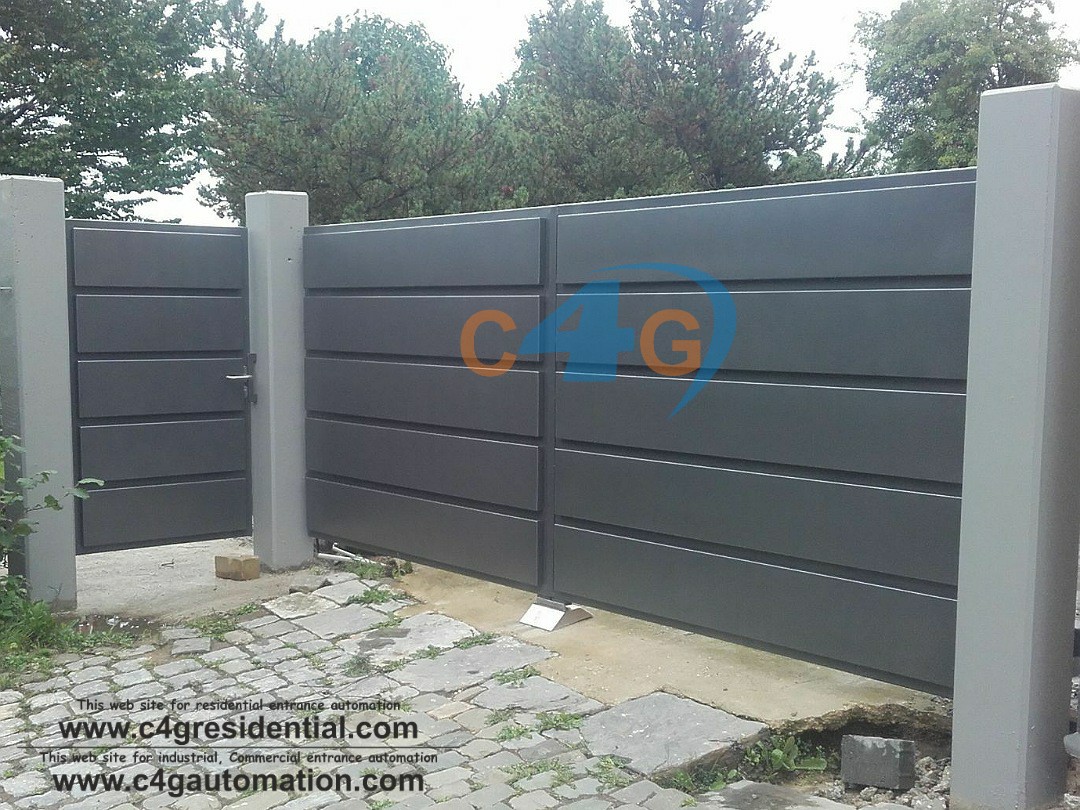

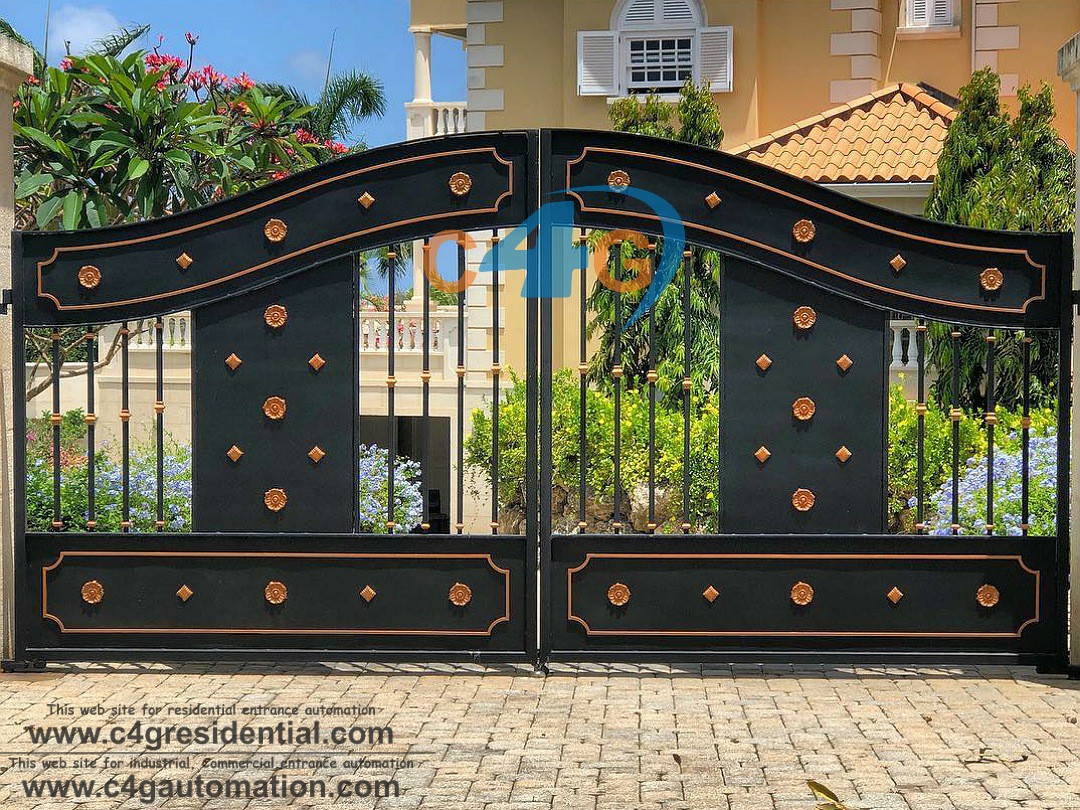

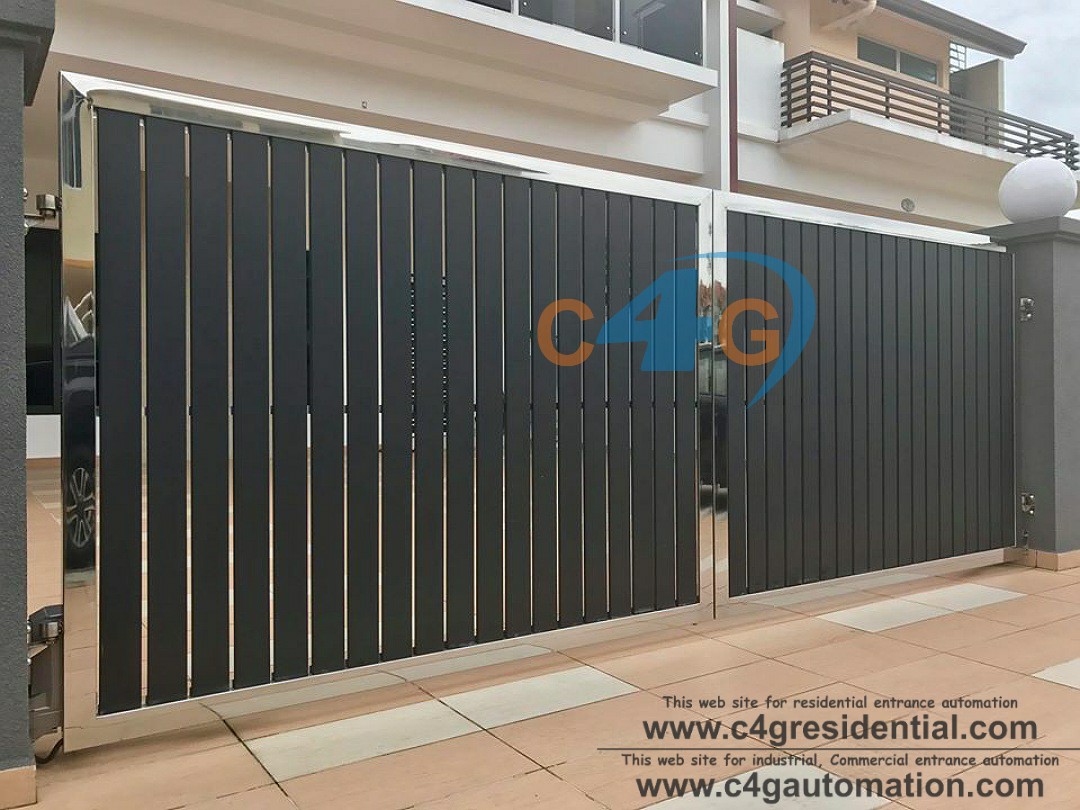

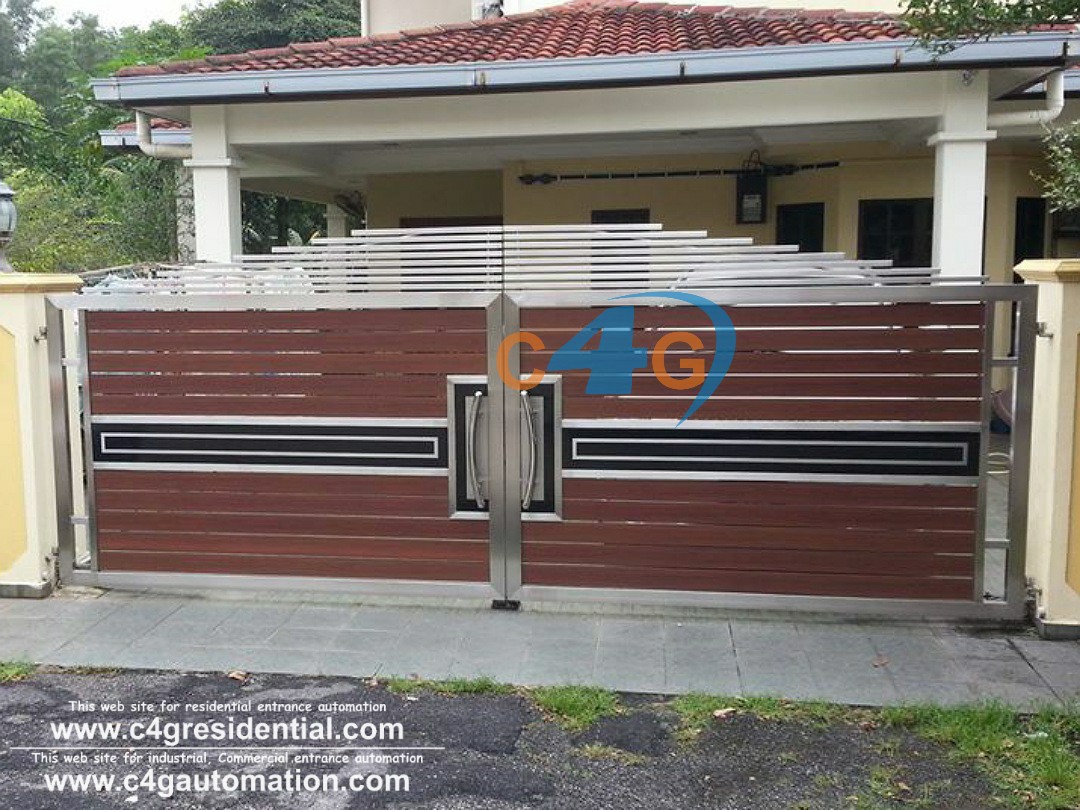

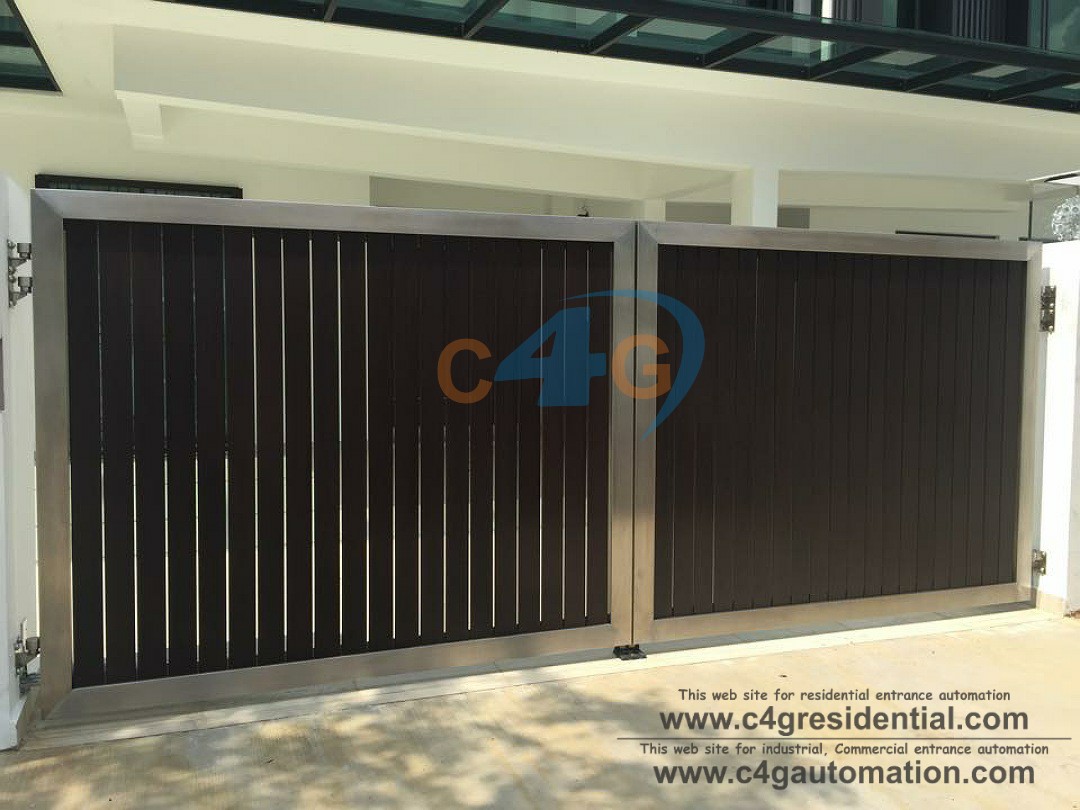

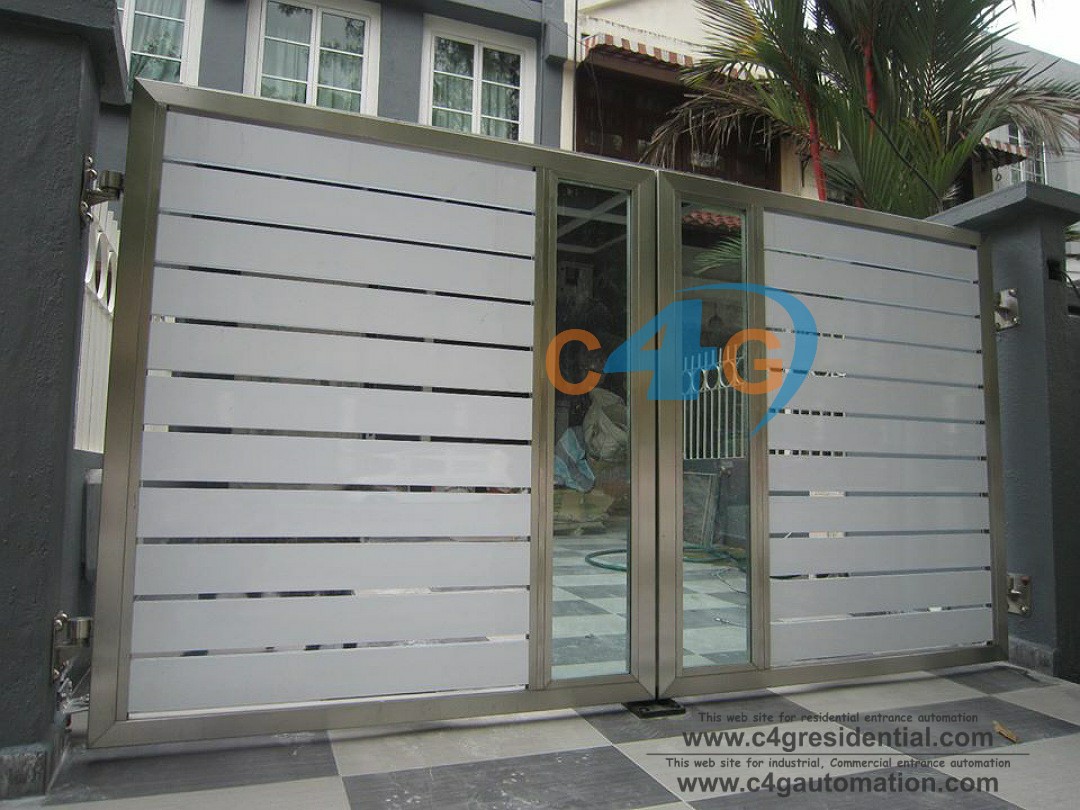

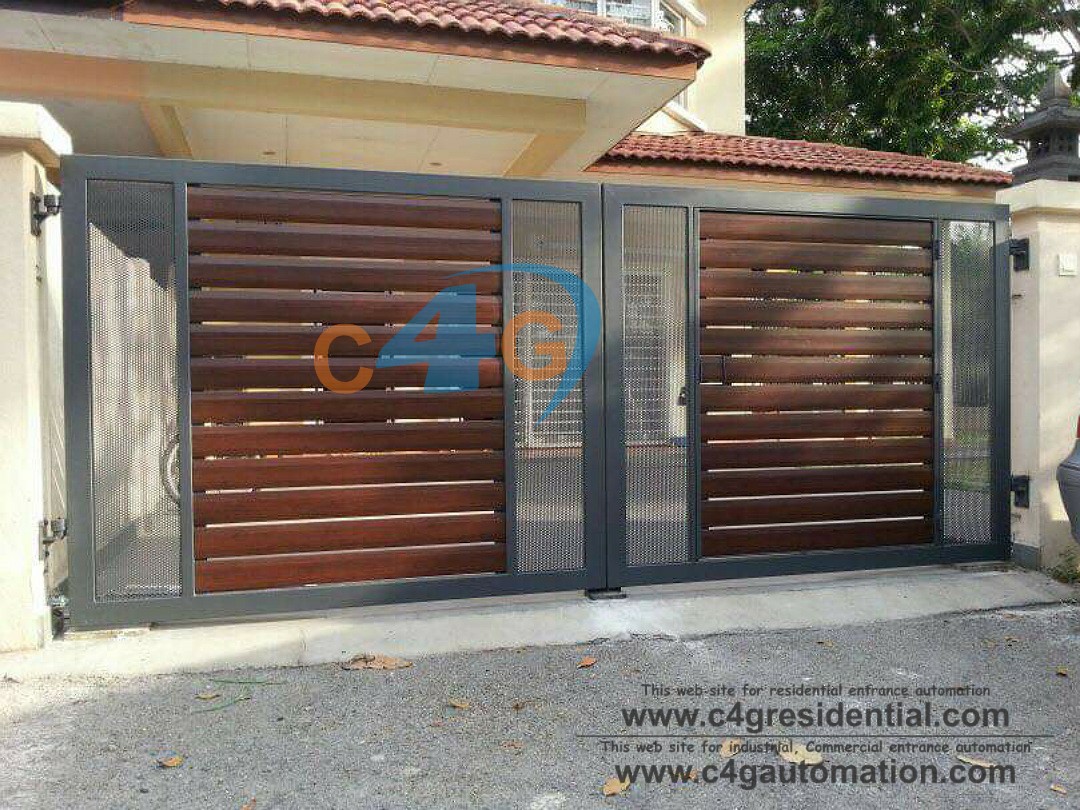

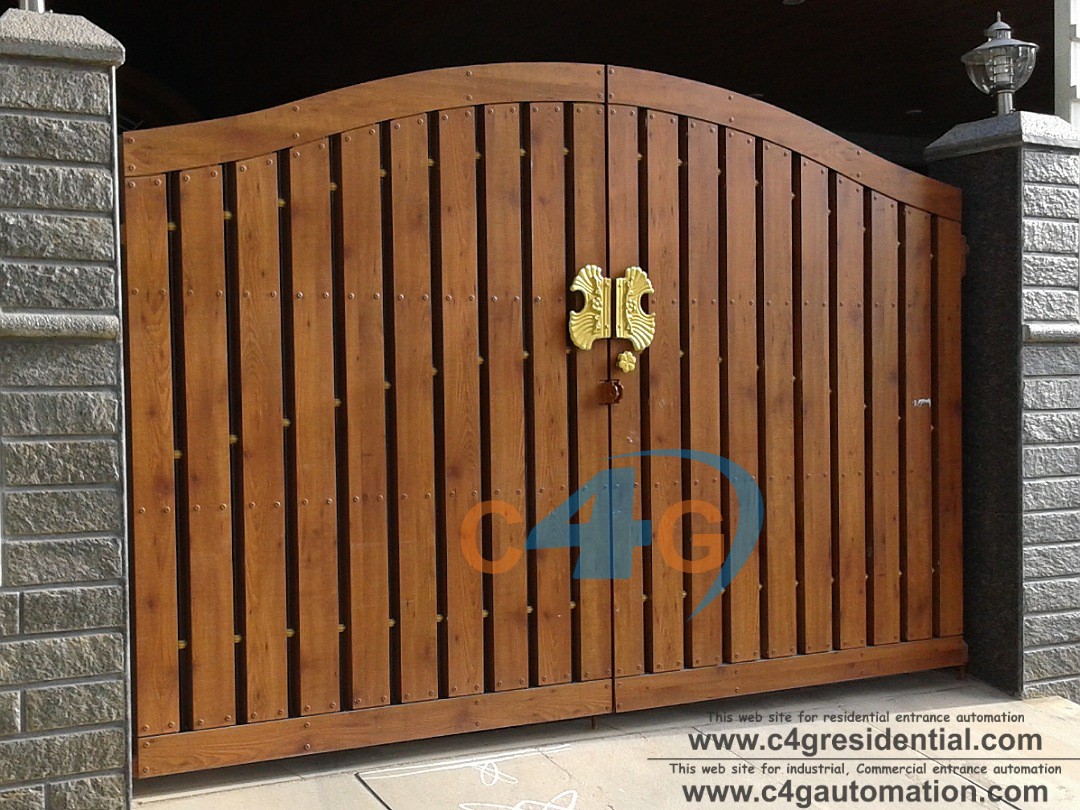

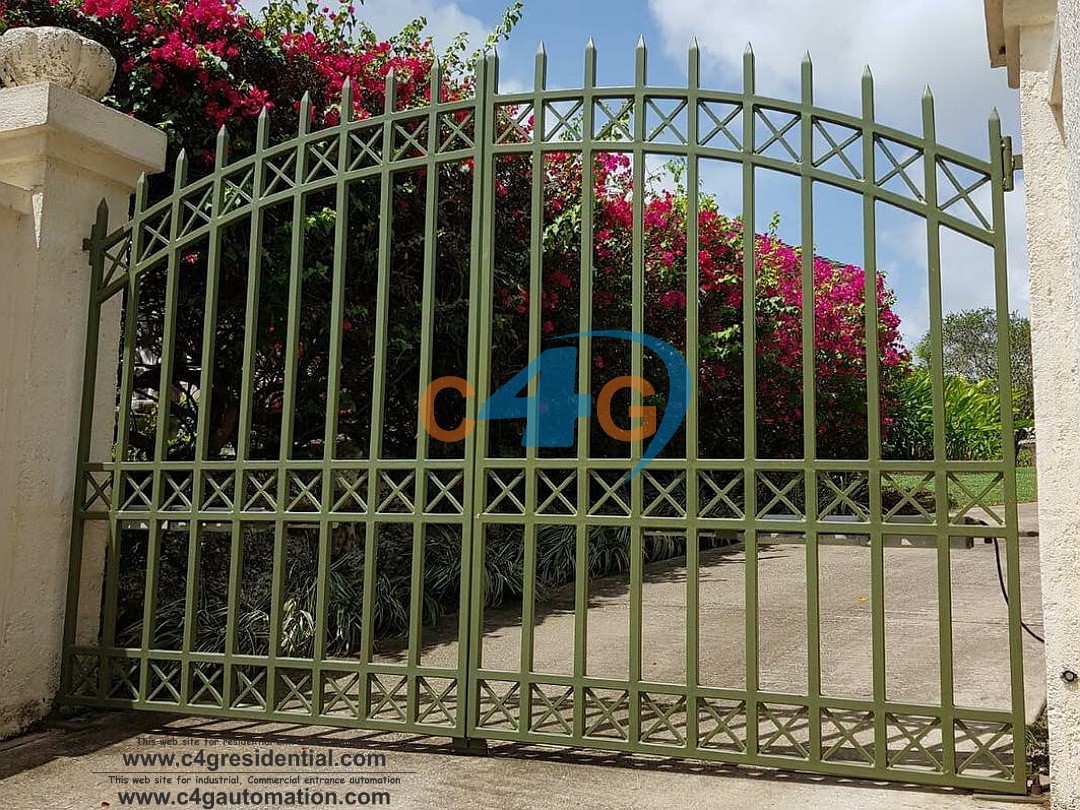

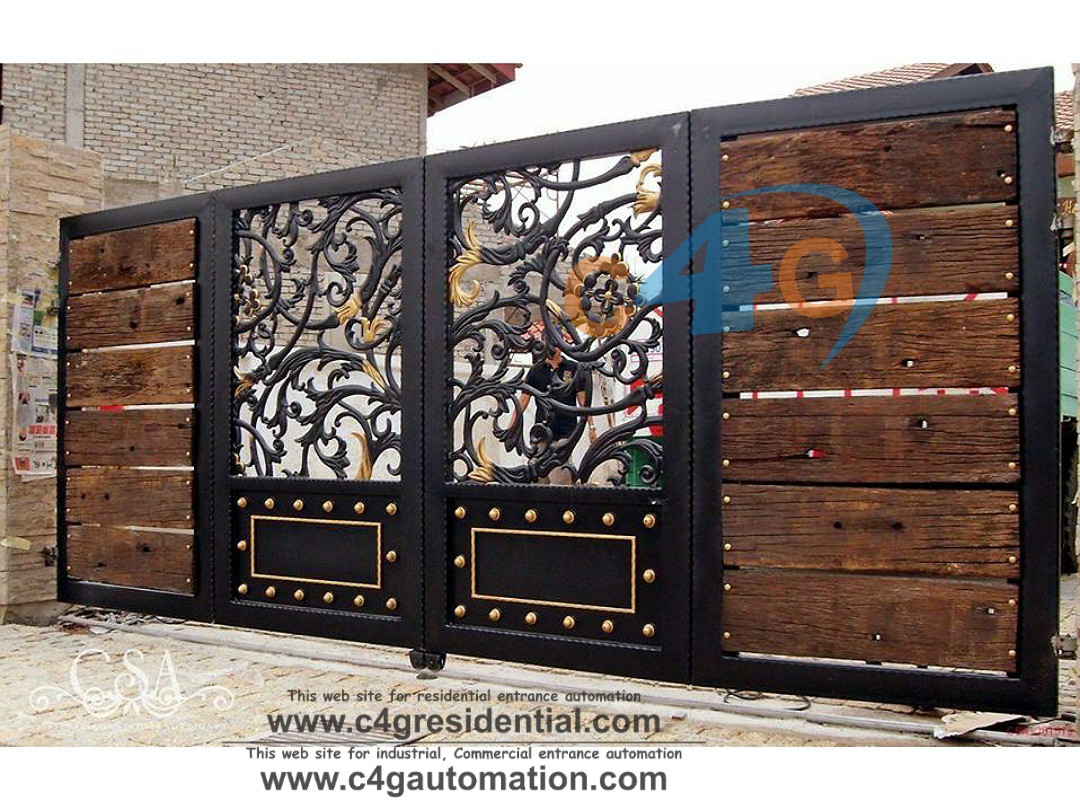

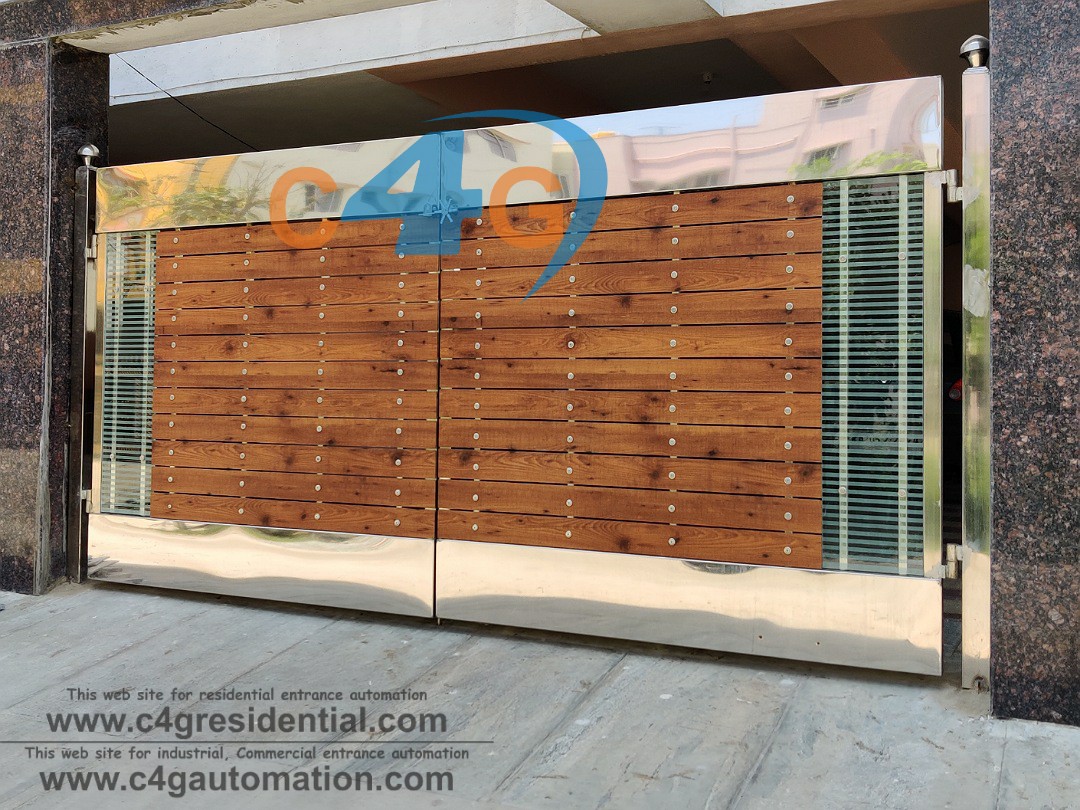

Swing Electric Gates

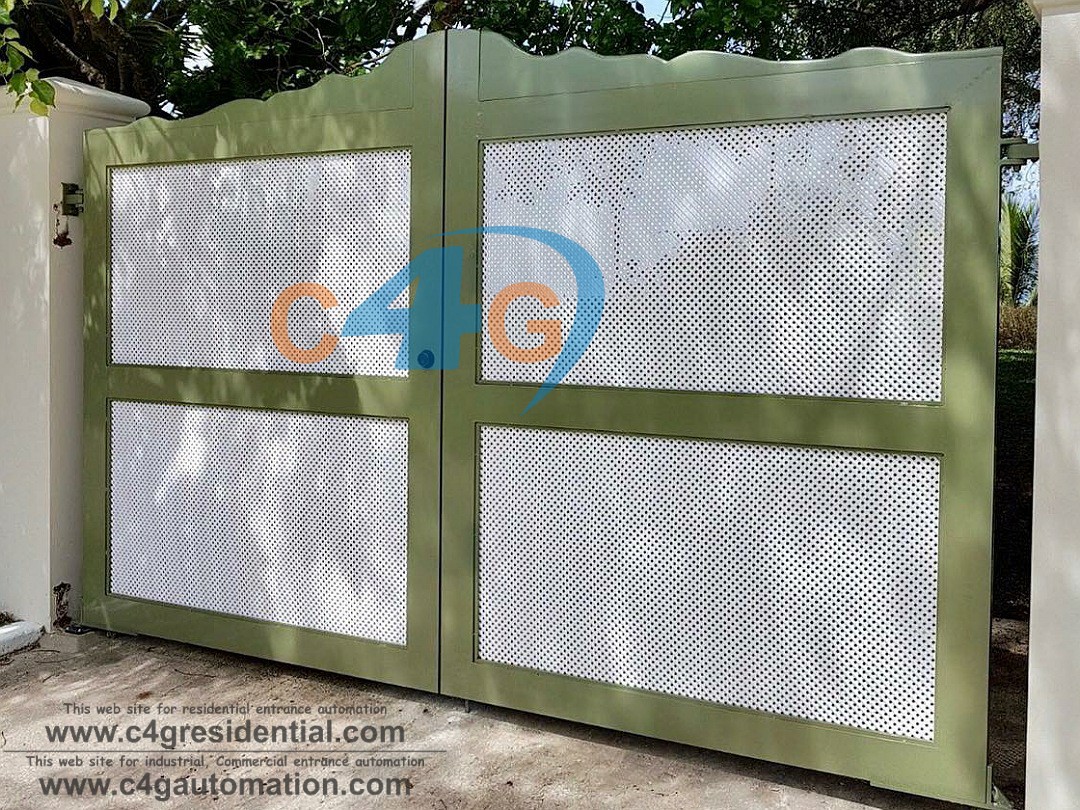

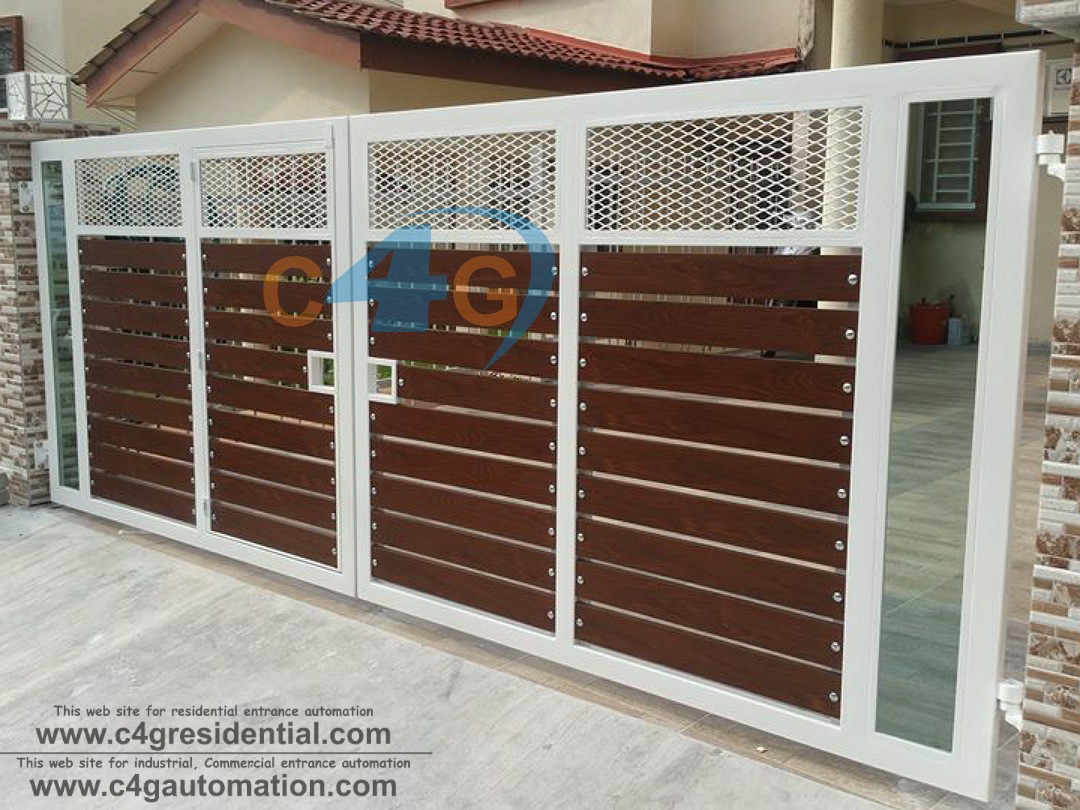

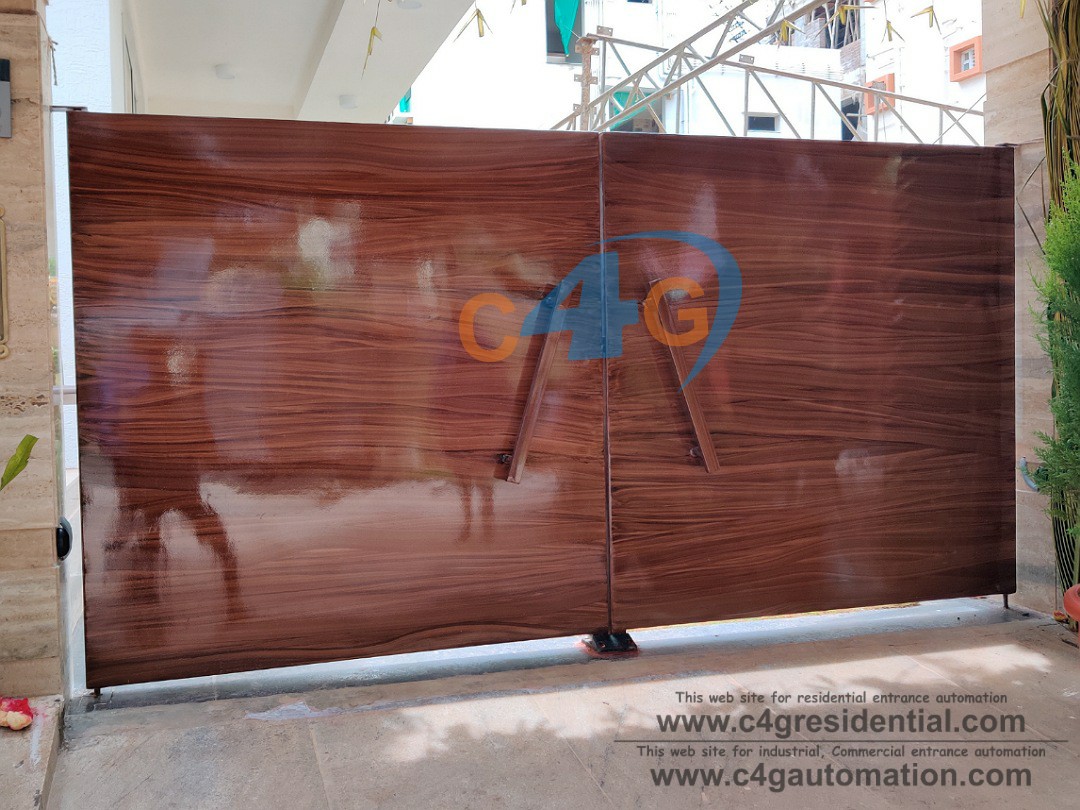

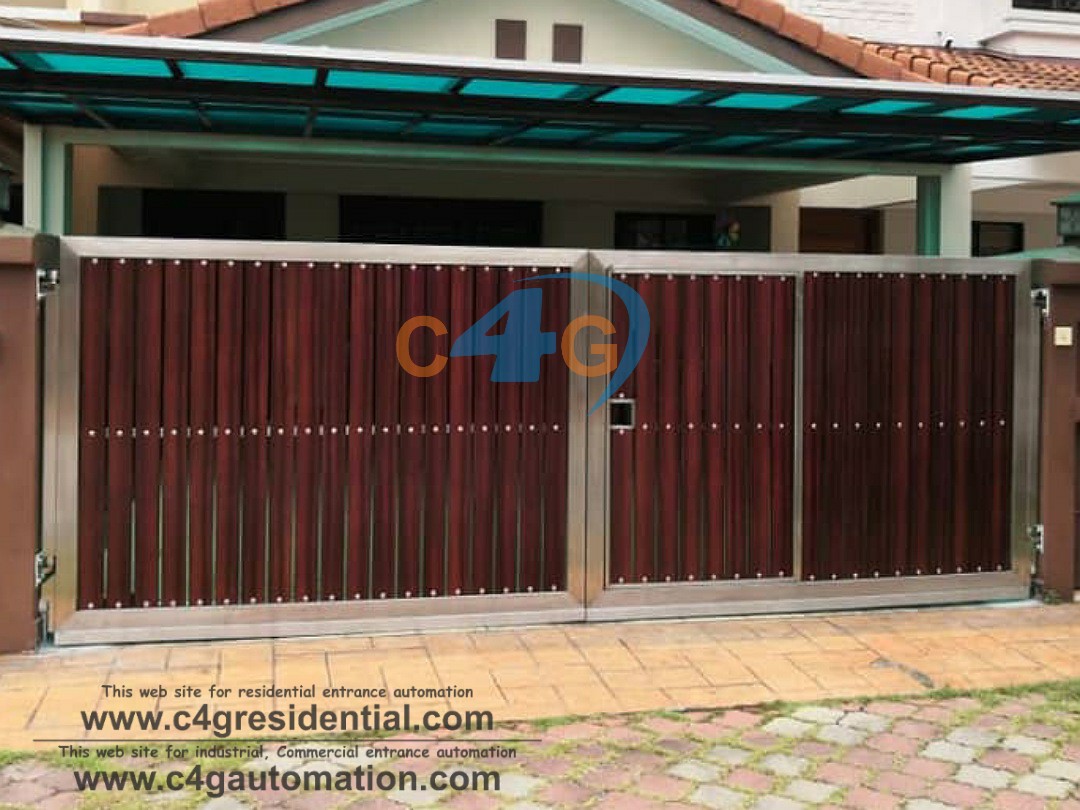

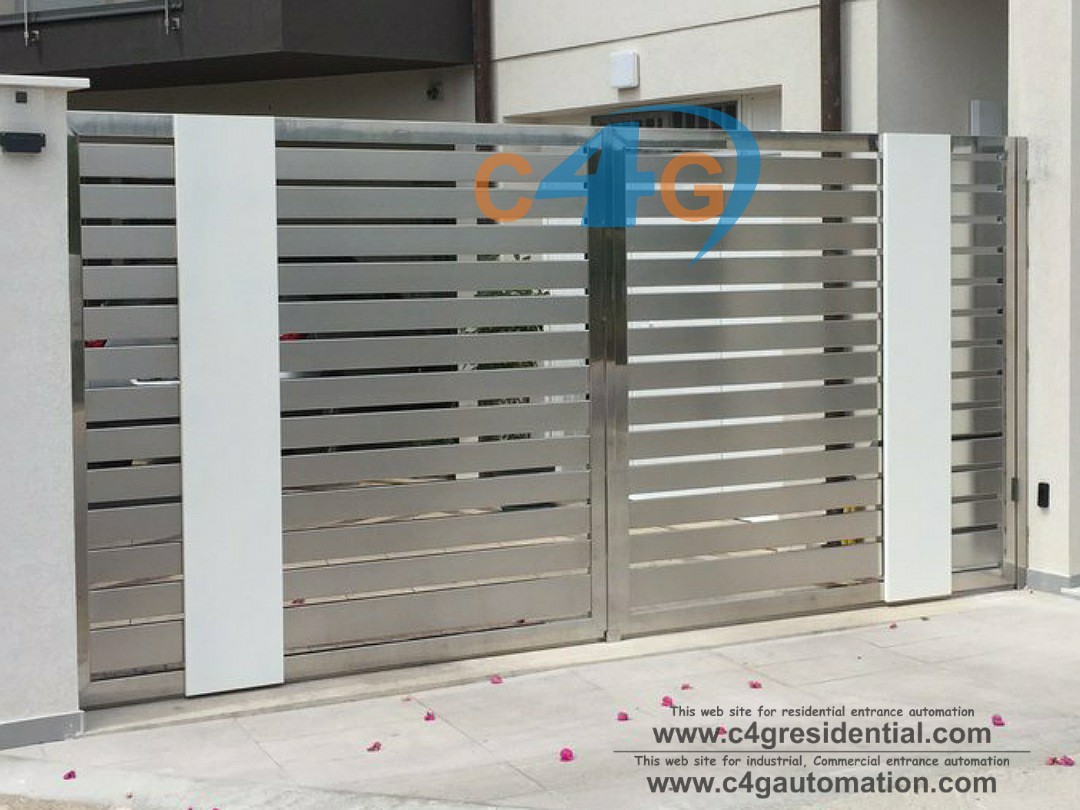

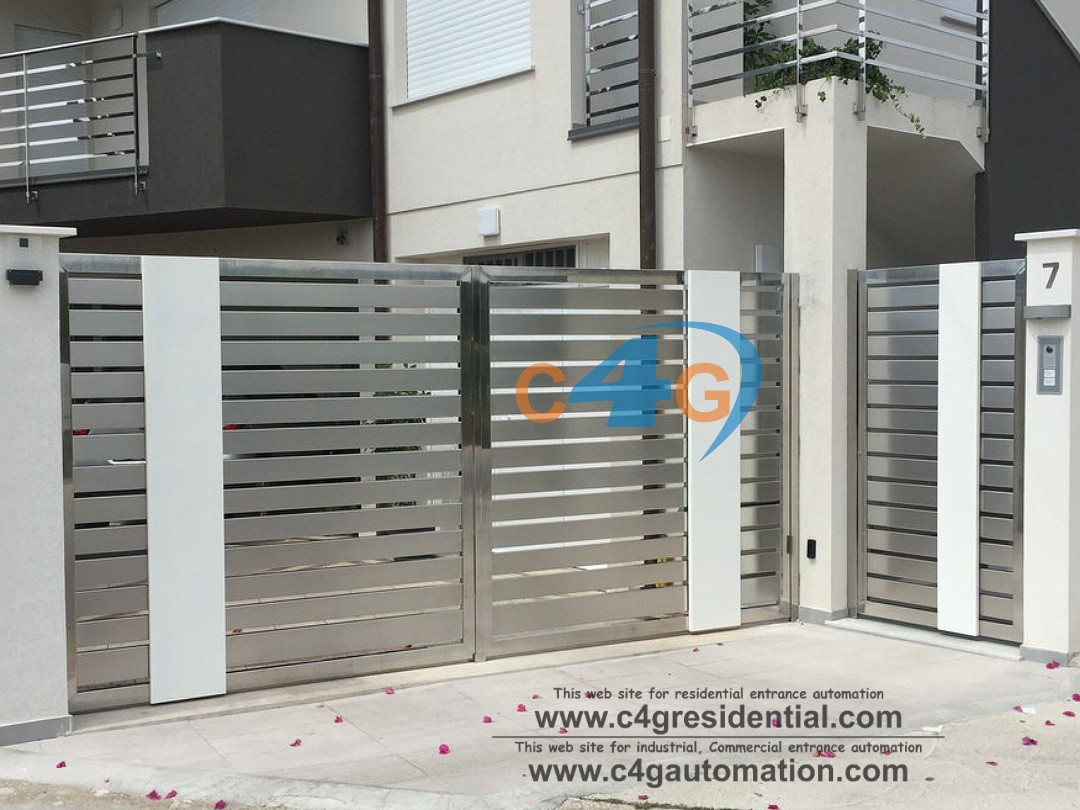

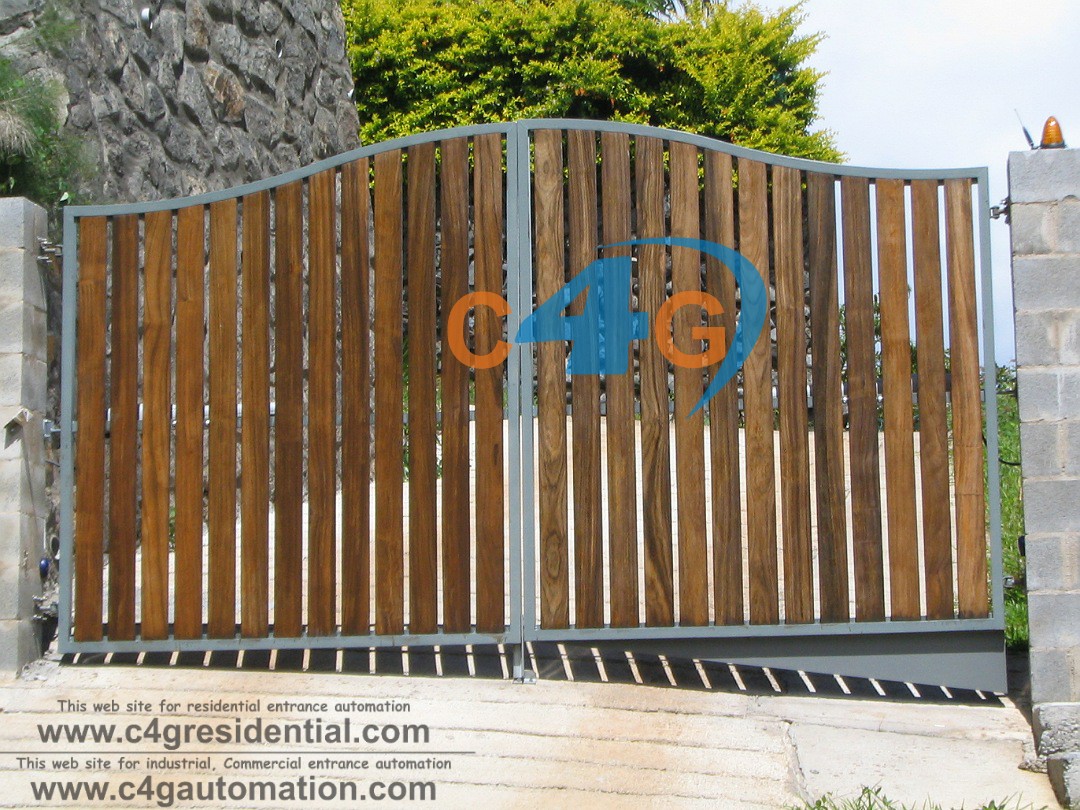

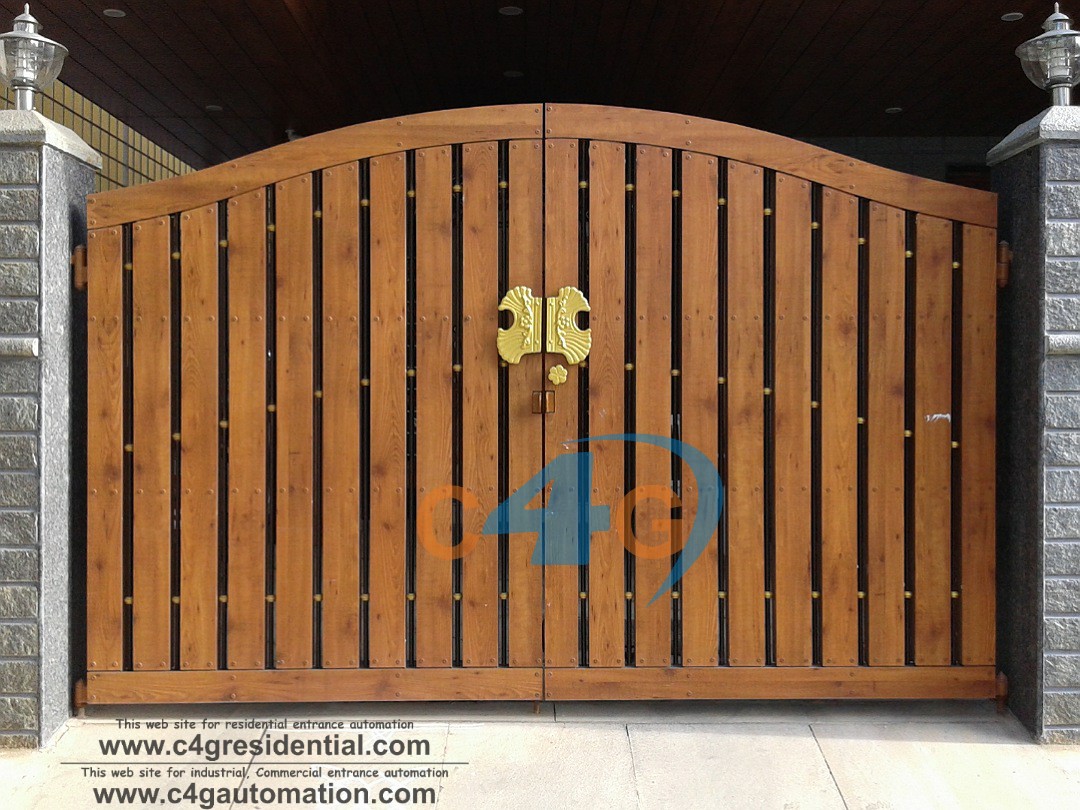

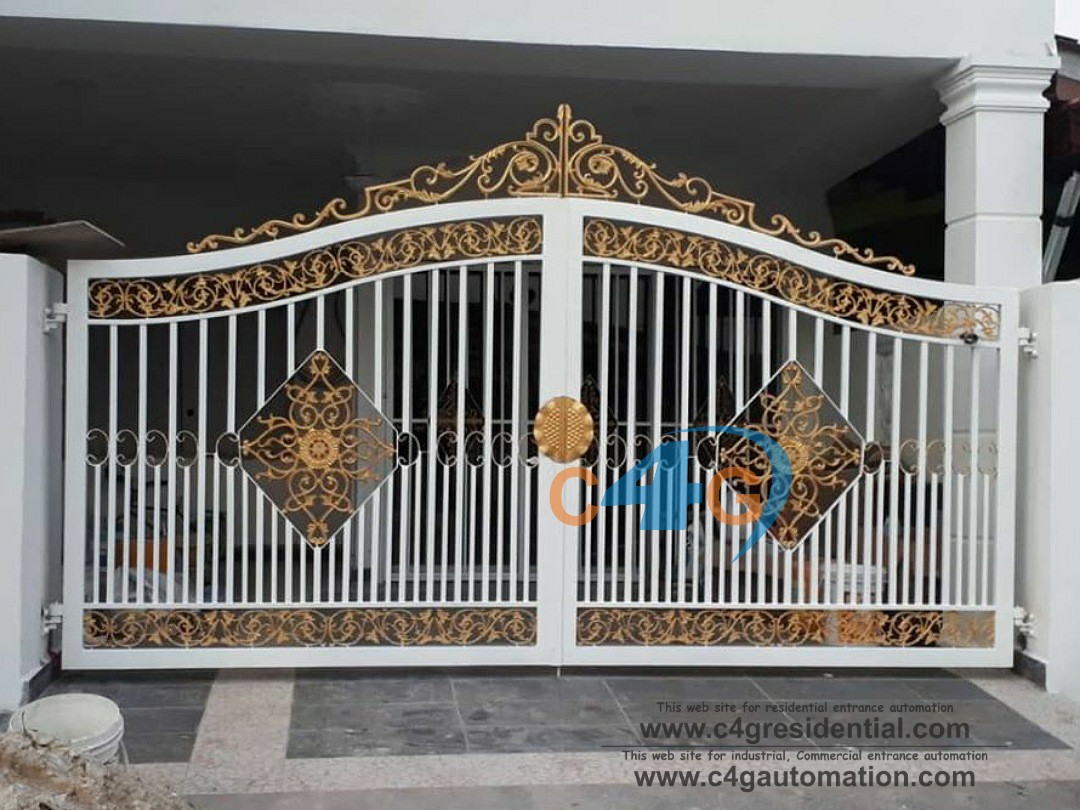

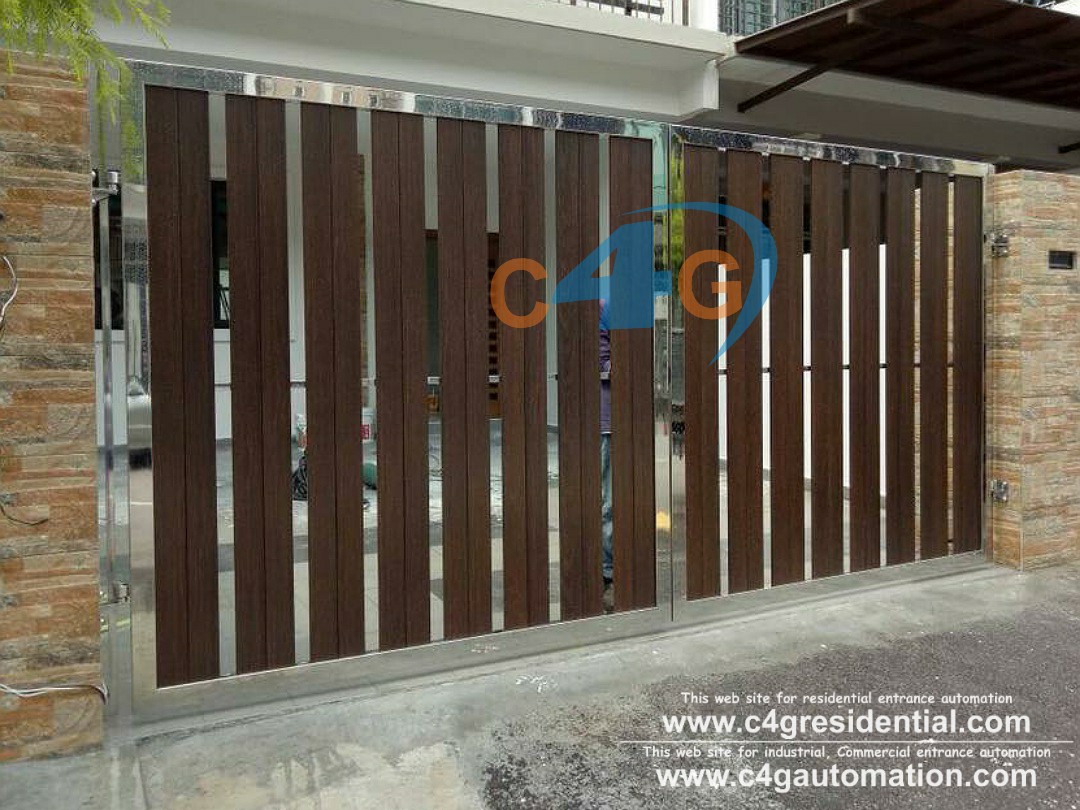

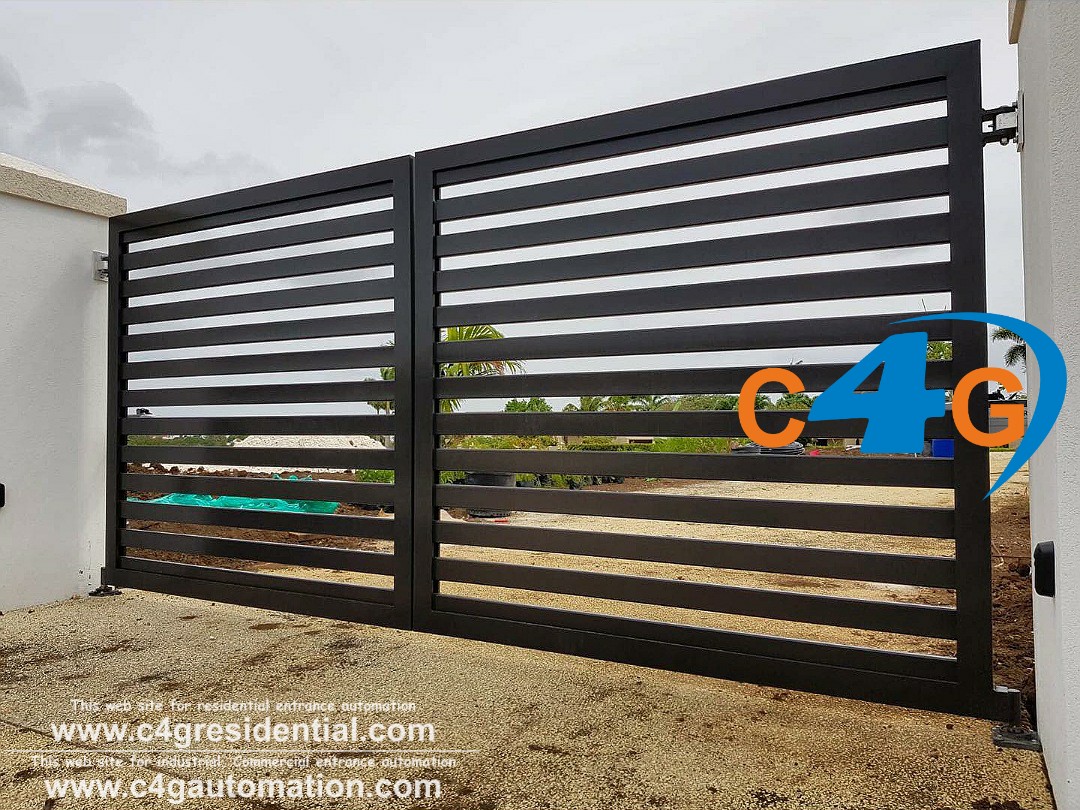

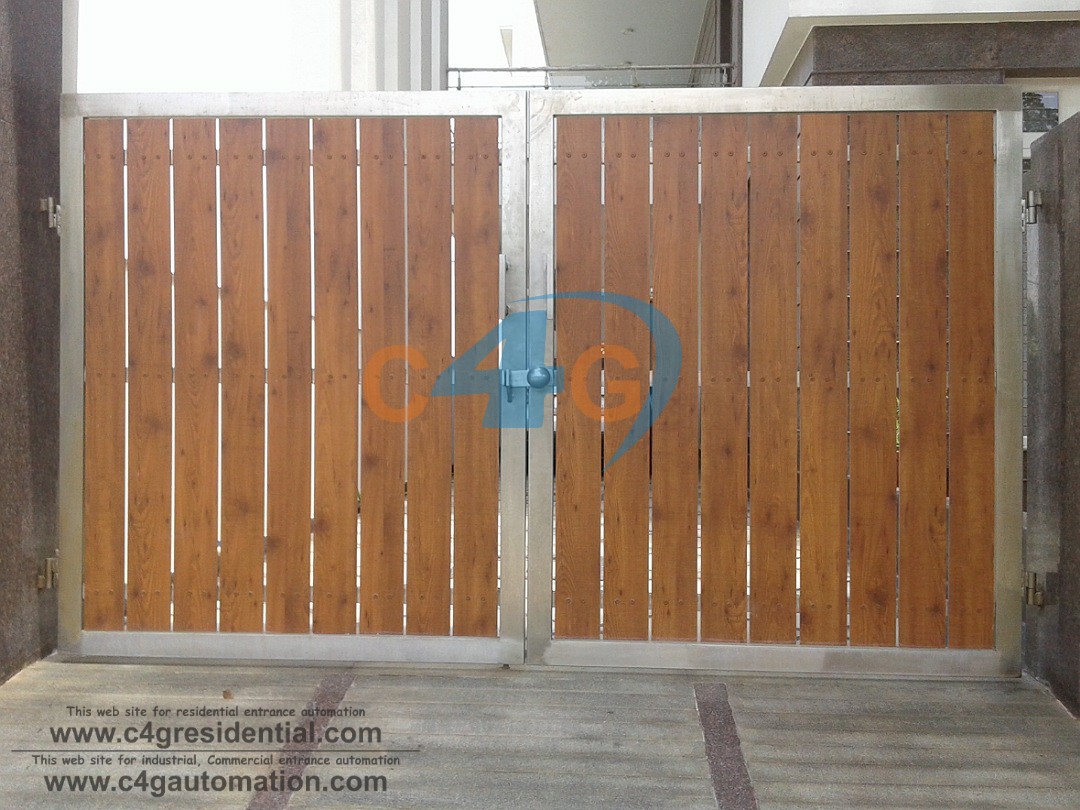

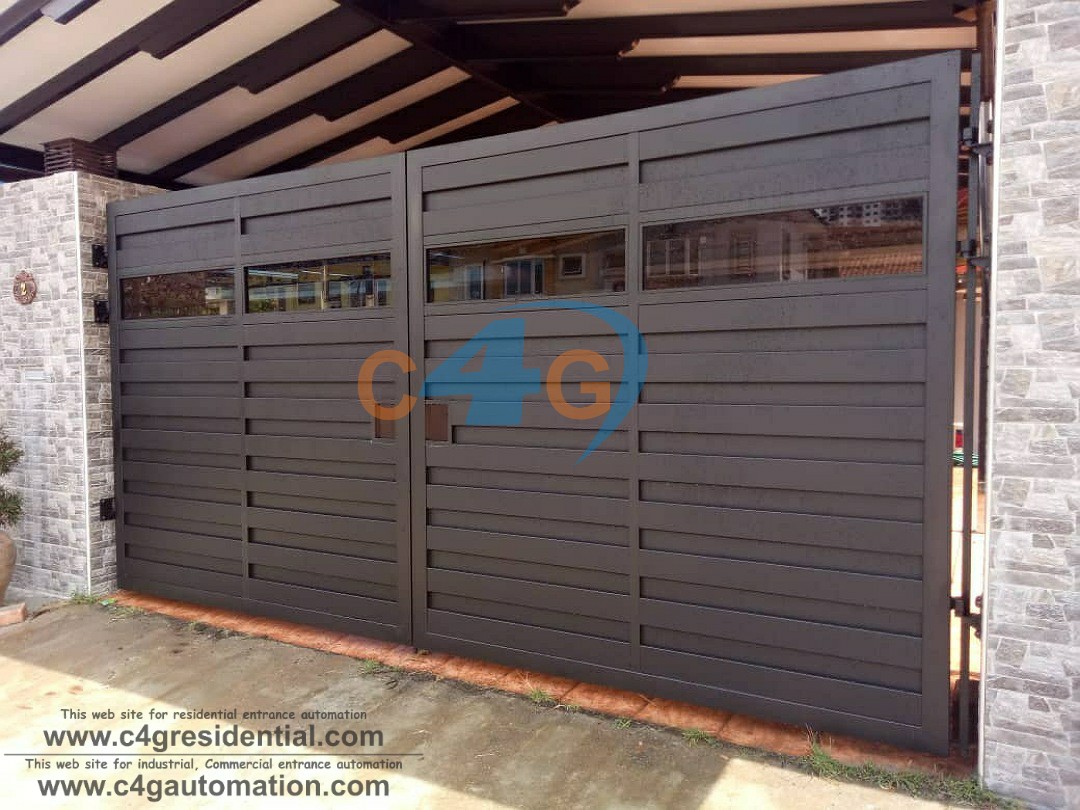

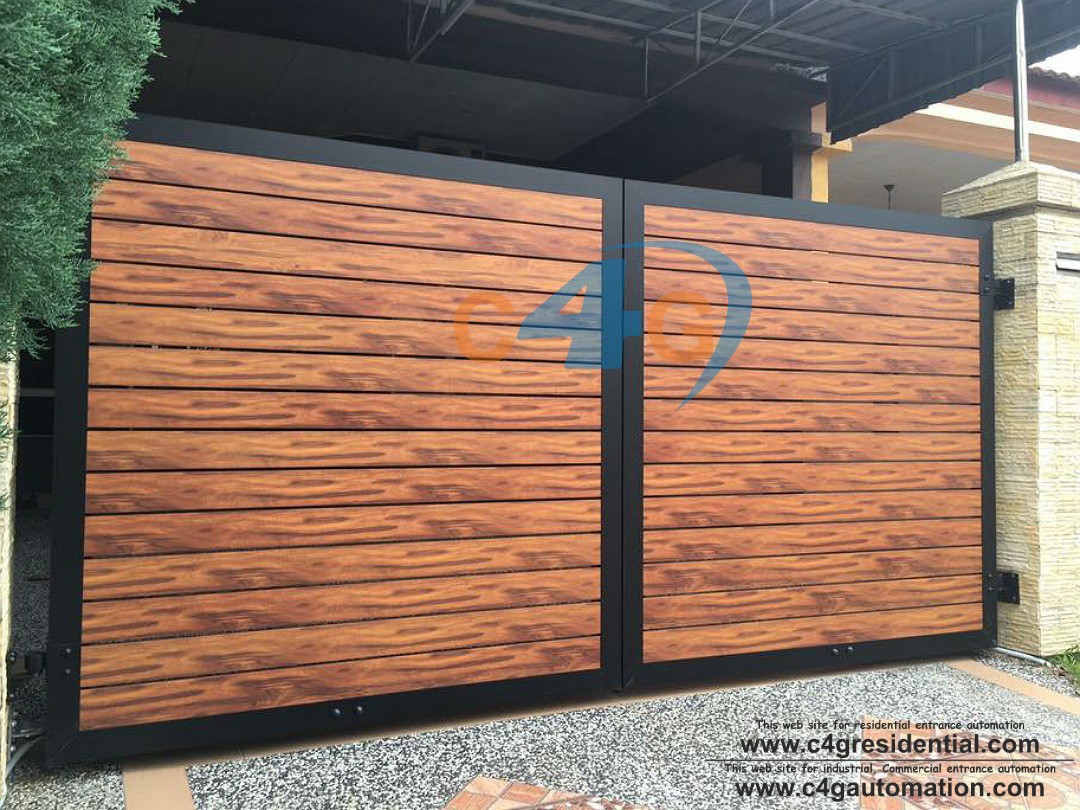

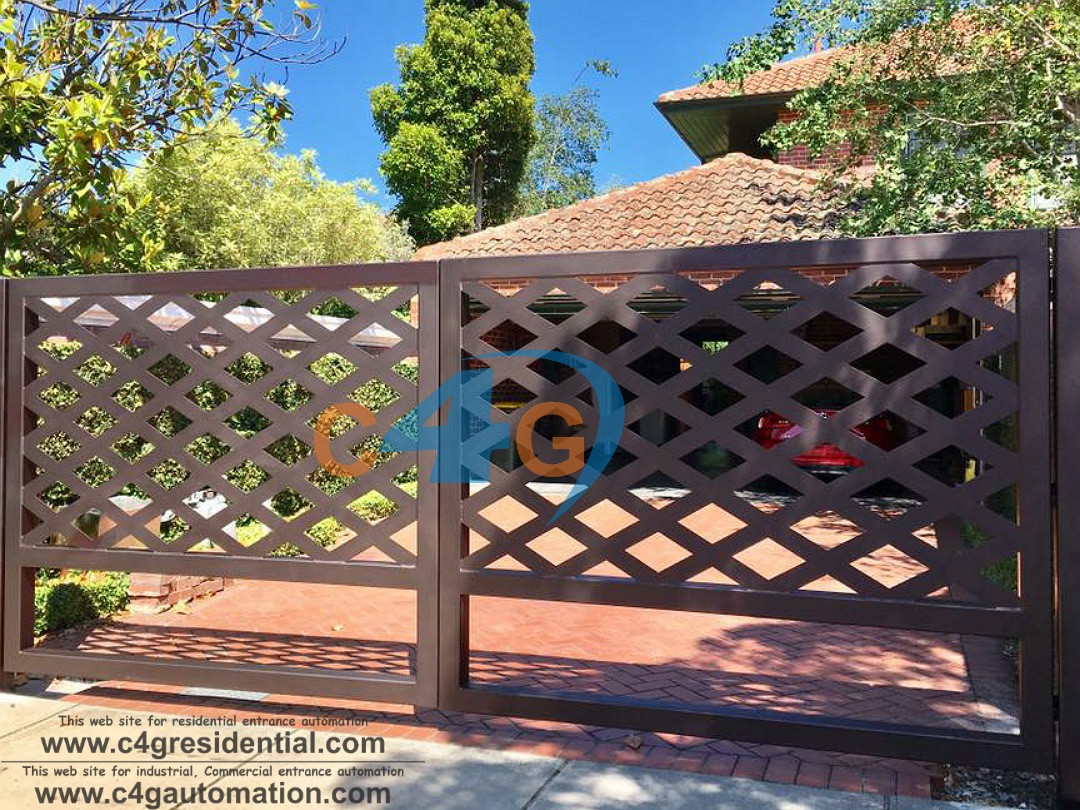

Swing gates typically travel a 90 degree arc between their open and closed positions. Swing gates can consist of a single leaf or double leafs and can be in-swinging or out-swinging. C4G has created an innovative system to incorporate an automated gate into any type of masonry column. Our inner column posts hold the weight of the gate and transfer the weight to the concrete foundations rather than the stonework. We can also hang our gates on stand alone metal posts. We build the posts to suit the project including our custom stand alone posts with a cast iron & aluminum cap and base for a beautiful finished look.
Swing gates are commonly used in residential, commercial & Industrial applications because of their low cost and ease of installation. Because swing gates travel over a large arc, space must be available to allow vehicles approaching the gate to remain clear while the gate opens or closes. Swing gate openers are electric arms that move in and out of the main opener body. This is attached both to the gatepost and part way out on the gate itself. When the remote is pressed the arm moves, so swinging the gate on its hinges to an open or closed position. The swinging arc of the gate also requires additional safety considerations to prevent people or vehicles from being hit or trapped by the moving gate.
Underground Swing Gate Automation
The C4G Underground automation system for swing gates is a geared motor. It is designed for underground installation and therefore does not alter the appearance of the gate itself. The foundation box of the automation system comes ready to take an operator. The C4G electromechanical operator is irreversible, so it ensures a mechanical stop and eliminates the need to install an electric lock for a gate up to 2 metres long.
In case of an emergency, manual operation is assured by a special lever release system with a customised key, accessible from both sides. The C4G model design includes a casing to house automated systems for gates of up to 1000kg per leaf, making installation simple. The foundation box is galvanized coating and is highly resistant to atmospheric agents, absolute weather-proofing, operators.

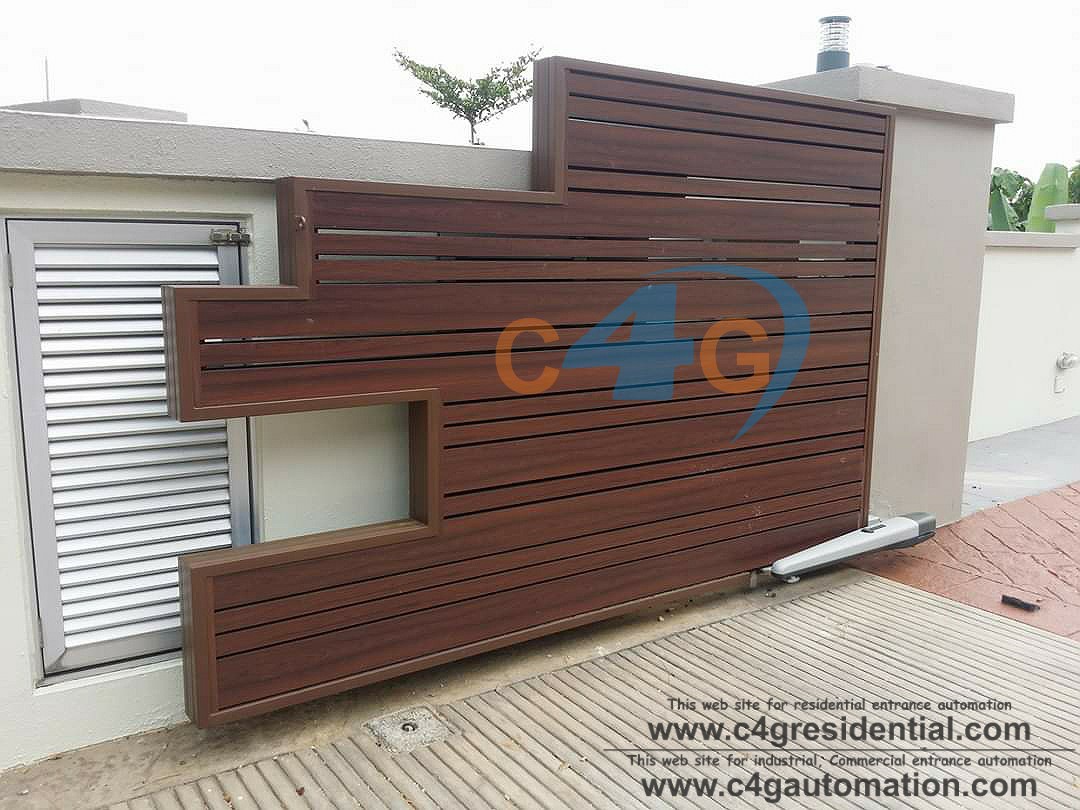

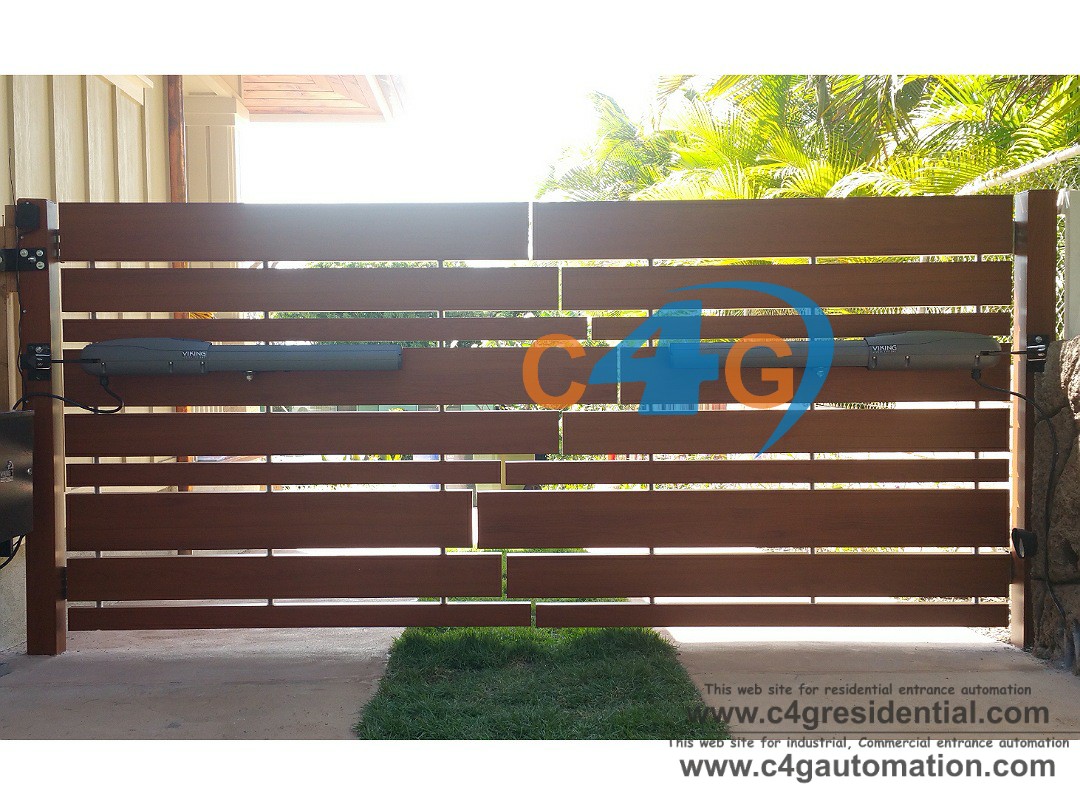

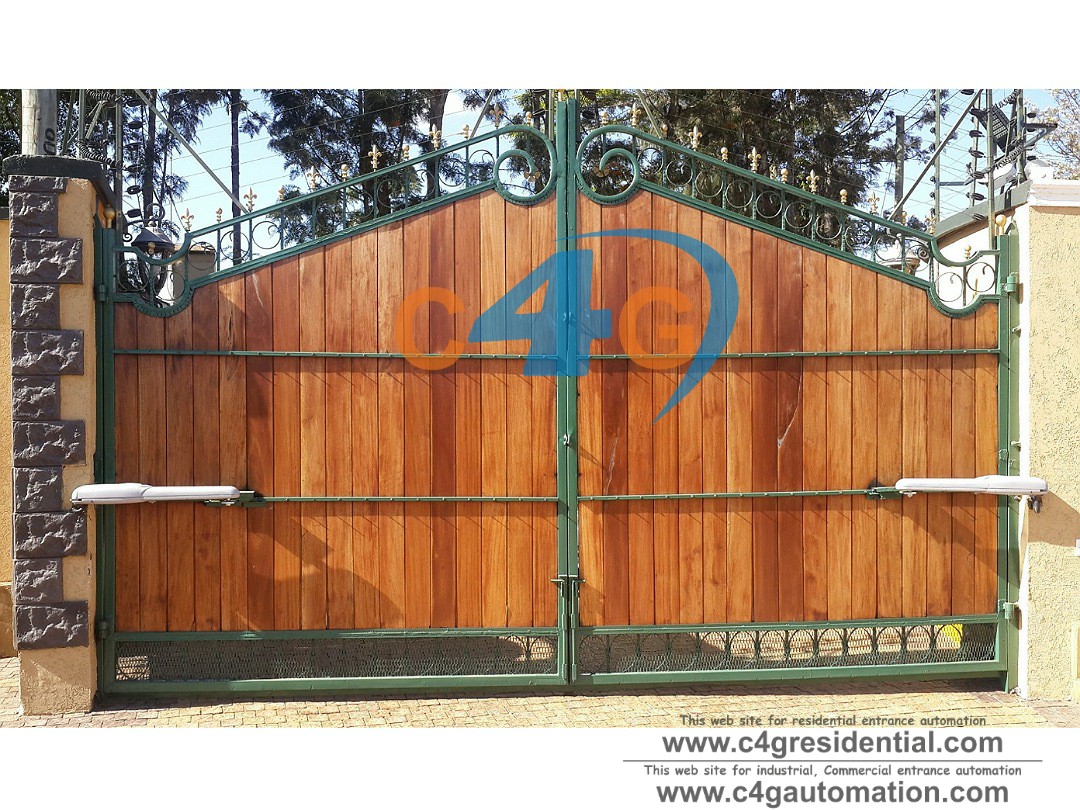

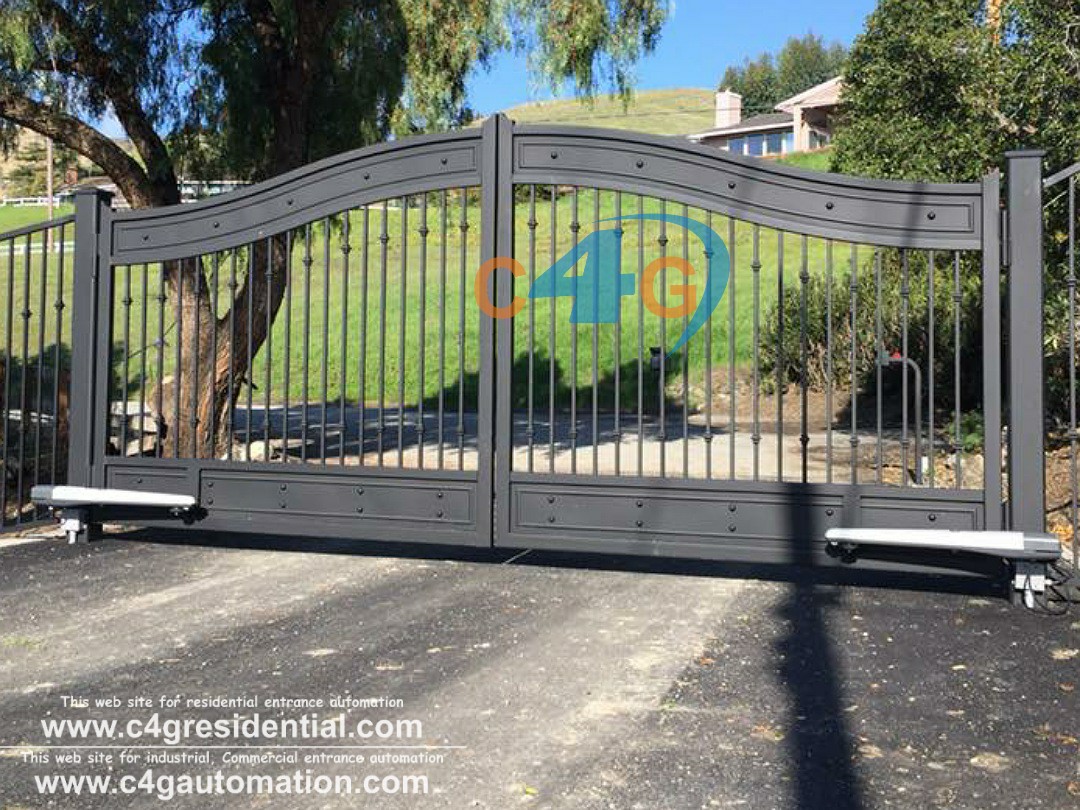

Overground Swing Gate Automation (Articulated Arm)
The C4G external automation with articulated arms automates residential swing gates with leaves of up to 3m in length. It consists of an irreversible electro-mechanical operator with guard and an articulated-arm activation system to be fitted to the gate with the appropriate accessories. The irreversible system ensures the automatic swing gate is mechanically locked when the motor is not operating. No locks need to be installed for leaves up to 1.8 metres in length. A manual release makes it possible to move the gate in the event of a power-cut or fault.
Heavy Duty Overground Swing Gate Automation (Hydraulic Arm)
The Heavy duty automation system for swing gates is a hydraulic unit comprising an electric pump and a hydraulic piston which moves the gate leaf. In case of an emergency, a customised release key makes it possible to operate the gate manually.
For high levels of use such as entrances/exits for apartments or office blocks, we would recommend that you fit a timer to open gates during busy periods of traffic.
